DOCK LEVELER

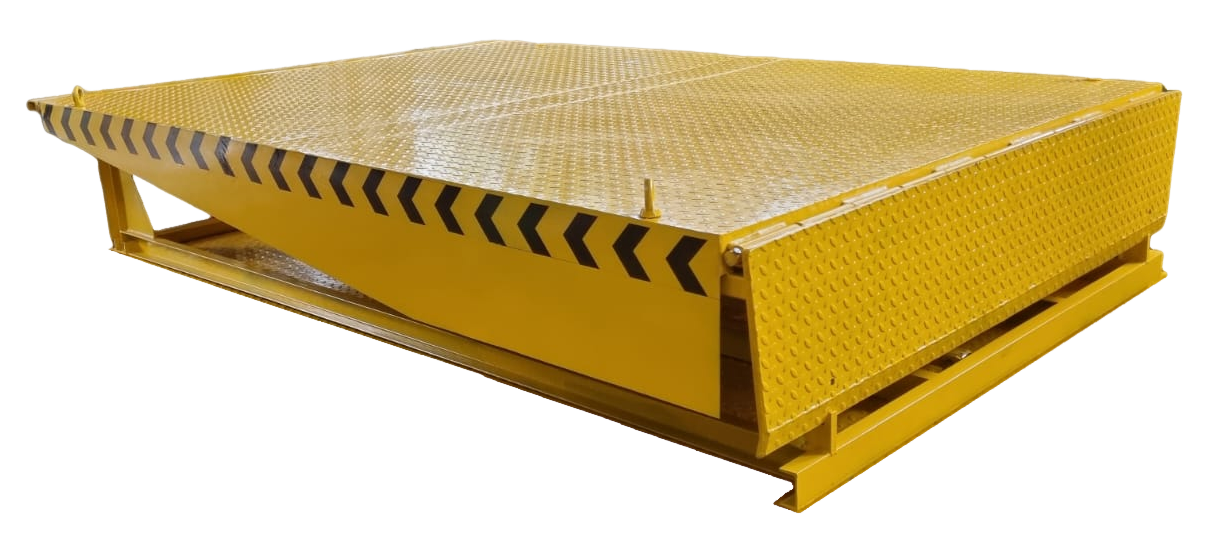

A dock leveler is a device used to bridge the gap between a warehouse floor and a truck bed, allowing for smooth and safe loading and unloading of goods. Commonly used in warehouses, logistics centers, and loading docks, dock levelers help accommodate height differences between vehicles and dock platforms, ensuring efficient material handling.
- Platform: Bridges the gap between dock and truck.
- Lip: Extends onto the truck bed for smooth transfer.
- Hydraulic System: Raises and lowers the platform.
- Safety Features: Protects users during operation.
| Specification | Details |
|---|---|
| Capacity | 6 - 15 Tons |
| Platform Size | 2000 mm x 2700 mm (Customizable) |
| Operation Type | Hydraulic / Manual |
| Lip Type | Telescopic / Hinged |
| Power Supply | 3 Phase, 415V, 50Hz |
| Usage/Application | Loading Dock / Warehouse / Logistics |
| Material | Heavy Duty Mild Steel |
| Color | Blue / Yellow / Customized |
| Warranty | 12 Months |
| Surface Finish | Anti-skid / Powder Coated |
| Lifting Mechanism | Hydraulic Cylinder |
| Control Panel | Push Button / Remote Option |
| Installation Type | Pit Mounted / Surface Mounted |
| Max Lift Height | 300 mm - 450 mm |
| Lip Length | 400 mm - 500 mm |
| Safety Features | Emergency Stop, Overload Protection |
